FAC1224M |
|
FAC1224M |
|||||||||
|
|
Items |
Description |
Tolerances |
|
|
Items |
Description |
Tolerances |
|||
|
1 |
Focal length |
12mm |
±5% |
|
1 |
Mount |
C-Mount |
* |
|||
|
2 |
Max. Aperture Ratio |
1:2.4 |
±5% |
|
2 |
Lens structure |
9G |
* |
|||
|
3 |
Operation range of Iris |
F2.4-F16 |
±5% |
|
3 |
Total track length |
≤50.8mm |
±0.1 |
|||
|
4 |
Operation range of Focus |
100mm-Inf. |
* |
|
4 |
Flange focal length |
17.526mm |
±0.1 |
|||
|
5 |
Max. Image Circle |
8.8mm×6.6mm(φ11mm) |
≥φ11mm |
|
5 |
Back focal length |
15.25mm |
±0.1 |
|||
|
6 |
TV distortion |
-0.10%（WD=300mm） |
* |
|
6 |
Weight |
71.1g |
±10% |
|||
|
7 |
FOV |
Image Size |
D |
H |
V |
±5% |
|
7 |

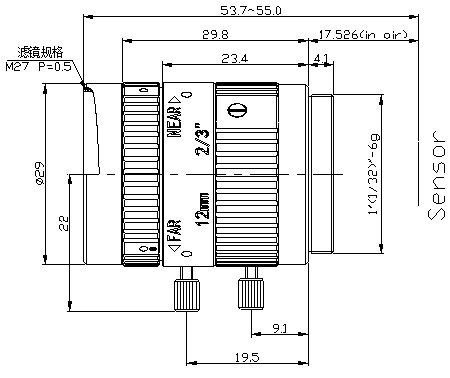

Dimensions |
Φ29mm×40.1mm |
±10% |
|
2/3" |
49.2° |
40.3° |
30.8° |
|
8 |
Filter Size |
M27.0P=0.5mm |
* |
|||
|
1/1.8" |
40.5° |
33.0° |
24.9° |
|
|
|
|
|
|||
|
1/2" |
36.9° |
29.9° |
22.6° |
|
|||||||
|
1/2.9" |
28.9° |
25.4° |
14.3° |
|
|||||||
